VARIOStore PROFESSIONAL - Secure protection in every season
The VARIOStore storage tent Professional is exceptionally suited for year-round use. Thanks to its individual side panels, it offers many body variants and thus a high degree of customisation. In the Professional quality, the tent has the strongest frame of the VARIOStore line. Particularly stable, extra strong standing poles, a ground frame and additional roof reinforcements make it maximally stable and weather-resistant. The strong 550 g/m² PCV tarpaulin is UV-resistant and 100% waterproof. The high sun protection factor of 80+ protects the stored goods ideally against UV radiation.
With the tent-to-tent principle and the matching connection gutters, the tent can be extended at any time both in length and in width.
Safe and robust
Bolted screw connection
Durable PVC tarpaulin
With tear-resistant patterned inner fabric
Throughout the year - thanks to 2 to 3-line roof reinforcement and an additional ground frame
Extra strong legs
With Ø 50mm - guarantee highest stability

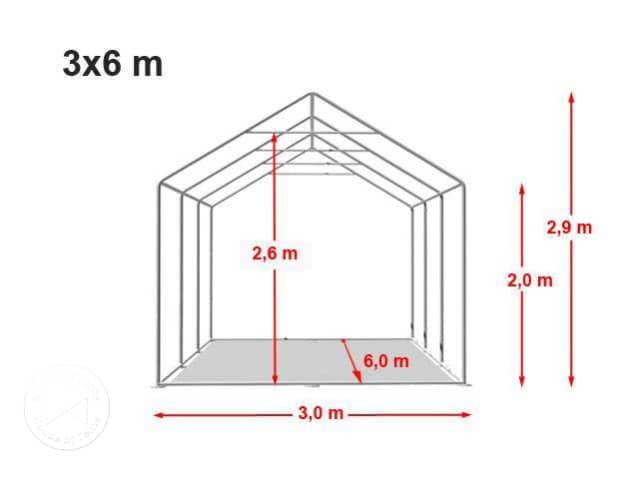

Details & Sizes
|Size WxL ca.:||3.0 x 6.0 m|
Materials and thicknesses:
|Roof tarpaulin:||approx. 550 g/m²; 100 % PVC|
|Side panels:||approx. 550 g/m²|
|Ø Steel pipes:||approx. 50 / 38 mm|
|Wall thickness of poles:||approx. 1.6 / 1.2 mm|
|Ø Steel pole connectors:||approx. 54 / 42 mm|
|Wall thickness of connectors:||approx. 1.7 / 1.4 mm|
|UV sun protection factor:||80+|
|Width:||approx. 3.00 m|
|Length:||approx. 6.00 m|
|Lateral height:||approx. 2.00 m|
|Ridge height:||approx. 2.9 m|
|Leg distance (for max. side entrance width):||approx. 2 m|
|WxL gate 1||approx. 2.0 x 2.0 m|
|WxL gate 2||approx. 1.0 x 2.0 m|
|Number of boxes:||6|
|Longest side:||197 cm|
|Total weight:||130 kg|
This tent construction is certainly progressing, defying wind and weather and is designed for year-round use. The extraordinary stability of the professional storage tent is due to its increased steel content, mounted in its extra strong legs and the additional reinforcing elements in the roof and floor area. Hereby, precipitation and weather-related forces can be optimally discharged, and the tent provides reliable protection throughout the year. The fully galvanized steel pipes provide excellent protection against corrosion and weather and are less sensitive to shocks than e.g. powder coated steel pipes. The material thicknesses are specially adapted to the high requirements, extend the period of use of this tent and make it so extremely robust and resistant.

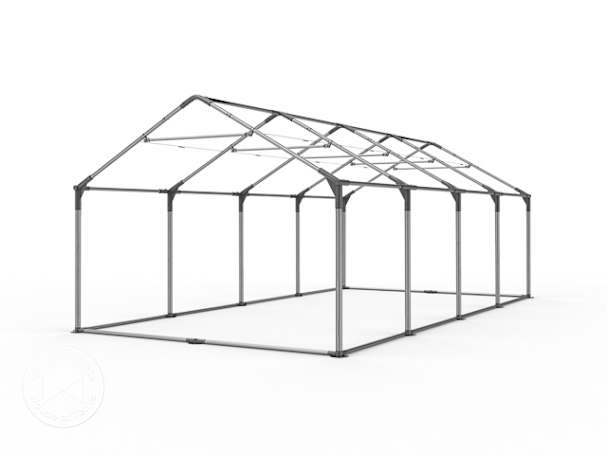

Solid steel frame - provides optimal protection
All steel pipes are fully galvanized inside and outside. This is resistant to impact and scratching and protects against corrosion.
- Extra-strong connectors approx.: Ø 54 mm / 42 mm, wall thickness 1.7 mm / 1.4 mm
- Extra-strong fully galvanized steel tubes approx.: Ø 50 mm / 38 mm, wall thickness 1,6 mm / 1,2 mm
Bolting - A secure connection.
With this sturdy bolt construction, all construction elements are firmly connected to each other with a bolt-screw connection.
- That is stable
- Insensitive and low maintenance
- Strengthens the entire construction significantly
- Use of 50 mm thick threaded screws
- Fuse with hexagon nuts
Roof reinforcement - more safety from above
The use of additional reinforcing steel elements in the roof derives weather-related forces, as well as precipitation. This makes this construction particularly resistant.
- Increased overall stability
- Increased roof load capacity
- Roof struts
- Additional steel wires between the rafters
Floor frame - secured and fixed
The ground frame is flexibly installable in individual elements. Undesirable elements e.g. in the entrance area, can be avoided by simply leaving out the appropriate element.
- Secures and fixes the legs on the ground
- Increases the stability considerably
- Side parts can be attached to it
- Reduces unwanted tarp movements
Tarpaulin & Doors
The 500 g / m2 PVC tarpaulin is comparable to a truck tarpaulin. The tarpaulin has an patterned internal fabric, which makes the PVC tarpaulin very tear-resistant and extremely robust. The PVC tarpaulin is characterized by a high weathering and UV resistance and is thus extremely durable. With a temperature resistance of +50 to -20 ° C and a high UV protection of 80+, the PVC tarpaulin proves to be a reliable protection in every season. The glossy, smooth look is particularly low-maintenance and easy to clean.
Roof tarpaulin - 100% waterproof throughout
The continuous roof tarpaulin holds the construction together and is therefore an important part of the stability.
- All seams are welded and not sewn
- Circulating flounce regulates ventilation, stops drafts
- Especially roofs that have been climbed are not waterproof - with us you get a 100% waterproof roof and not just one made of waterproof material.
XXL Floor skirts - Extra protection against wind and rain
The extended floor skirt lies around 30 cm on the ground and reliably protects the tent interior.
- Lets rain fall off far enough the tent
- Reduces the penetration of soil moisture
- Stops drafts
- Has eyelets inside and outside
Assembly in a few steps:
- Install roof structure
- Pull on the roof tarpaulin
- Attach standing poles to one side
- Attach further standing poles
- Attach further legs and ground frame
- Attach sidewalls
- Anchor the tent to the ground depending on earth or concrete anchors
- Fix the storm protection ropes
- With easy-to-understand assembly instructions
- Everything you need is included: No extra tools needed for assembly
- The assembly time is with 2 persons on average 1 hours.
Accessories & Spareparts
Do you need a spare part for your tent?
No problem! Our experts are happy to help. Just call us or chat with us, so that we can help you quickly and easily. It is best to keep the article number of the required spare part or your invoice ready. The article number can be found in the assembly instructions of your tent.Order Spareparts
