VARIOStore ECONOMY - quickly and 100% flexible usable
The VARIOStore storage tent in Economy quality is the perfect companion for individual, temporarily, projects. It can be assembled quickly, and the side and gable panels can be partially or entirely omitted, according to personal wishes. The economy storage tent has an easy-to-install galvanized, corrosion-resistant steel frame and a robust, 500 g/m² PVC tarpaulin. The PVC tarpaulin offers a high sun protection factor of 80+, is UV-resistant and is 100% waterproof thanks to welded seams.
With the tent-to-tent principle and the matching connection gutters, the tent can be extended at any time both in length and in width.
quality characteristics
Safe and robust
Bolted screw connection
Solid steel frame
Shock-resistant and low-maintenance
Durable PVC tarpaulin
With tear-resistant patterned inner fabric
Protected against corrosion
Steel pipes fully galvanized inside and outside
Examples of use
Details & Sizes
Base data:
| Article no.: | 6118 |
| Size WxL ca.: | 5.0 x 10.0 m |
| Colour: | white |
Materials and thicknesses:
| Roof tarpaulin: | approx. 500 g/m²; 100 % PVC |
| Side panels: | approx. 500 g/m² |
| Ø Steel pipes: | approx. 38 mm |
| Wall thickness of poles: | approx. 1.1 mm |
| Ø Steel pole connectors: | approx. 42 mm |
| Wall thickness of connectors: | approx. 1.3 mm |
Weather resistance:
| 100% waterproof: | Yes |
| UV-resistant: | Yes |
| UV sun protection factor: | 80+ |

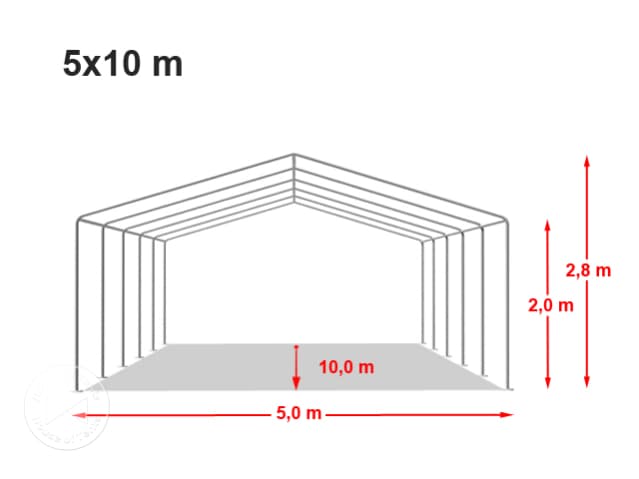

Product sizes:
| Width: | approx. 5.00 m |
| Length: | approx. 10.00 m |
| Lateral height: | approx. 2.00 m |
| Ridge height: | approx. 2.75 m |
| Leg distance (for max. side entrance width): | approx. 2 m |
| WxL gate 1 | approx. 3.8 x 2.0 m |
| WxL gate 2 | approx. 1.6 x 2.0 m |
Package data/sizes:
| Number of boxes: | 5 |
| Longest side: | 197 cm |
| Total weight: | 145 kg |
Frame
The tent construction is crucial for the solid stability of this tent. All construction components are firmly and reliably bolted together with a screwed-through system. In addition, the steel thickness and steel tube diameter are specially tailored to the requirements of this tent and make it robust and resistant. Fully galvanized steel pipes form an excellent basis. They reliably protect against corrosion and weather and are less sensitive to shock than e.g. powder coated steel pipes.
- 1:Solid steel frame - provides optimal protection
- 2:Bolting - A secure connection.
- 3:Feet - securely anchored to the ground!
Solid steel frame - provides optimal protection
All steel pipes are fully galvanized inside and outside. This is resistant to impact and scratching and protects against corrosion.
- Steel pipe connector approx.: Ø 42 mm, wall thickness 1.3 mm
- Fully galvanized steel pipes approx.: Ø 38 mm, wall thickness 1,1 mm
Bolting - A secure connection.
With this sturdy bolt construction, all construction elements are firmly connected to each other with a bolt-screw connection.
- That is stable
- Insensitive and low maintenance
- Strengthens the entire construction significantly
- Use of 50 mm thick threaded screws
- Securing with wing nuts
Feet - securely anchored to the ground!
At each pillar a foot element is firmly welded.
- Diameter foot plate about 9.5 cm
- Secure to fix with pegs (included)
- Also suitable for concrete anchors (see separate accessories)
Tarpaulin & Doors
The 500 g / m2 PVC tarpaulin is comparable to a truck tarpaulin. The tarpaulin has a patterned internal fabric, which makes the PVC tarpaulin tear-resistant and durable. The PVC tarpaulin is characterized by a high weathering and UV resistance and is very durable. With a temperature resistance of +50 to -20 ° C and a high UV protection of 80+, the PVC tarpaulin proves to be a reliable protection in every season. The glossy, smooth look is particularly low-maintenance and easy to clean.
- 1:Roof tarpaulin - 100% waterproof throughout
- 2:Bungees - easy fast and safe
- 3:Single side panels - for variable entrances also on the side
- 4:XXL Floor skirts - Extra protection against wind and rain
- 5:Tent climate - self-regulating air exchange
- 6:Each gable side has one entrance.
Roof tarpaulin - 100% waterproof throughout
The continuous roof tarpaulin holds the construction together and is therefore an important part of the stability.
- All seams are welded and not sewn
- Circulating flounce regulates ventilation, stops drafts
- Especially roofs that have been climbed are not waterproof - with us you get a 100% waterproof roof and not just one made of waterproof material.
Bungees - easy fast and safe
All tarpaulin elements are attached to the frame using bungees.
- Especially quick and easy installation
- Slightly yield in wind and thus reduce the risk of damage
- Can be easily exchanged if necessary
Single side panels - for variable entrances also on the side
The side walls are inserted at a distance of 2 m and can be variably installed or removed.
- Allows entrances at any position
- Dimensions W / H approx .: 2/2,0 m
XXL Floor skirts - Extra protection against wind and rain
The extended floor skirt lies around 30 cm on the ground and reliably protects the tent interior.
- Lets rain fall off far enough the tent
- Reduces the penetration of soil moisture
- Stops drafts
- Has eyelets inside and outside
Tent climate - self-regulating air exchange
The anti-hermetic system guarantees an excellent climate in the tent.
- No airtight tarpaulin locking
- Automated air exchange
- Protection against condensation
- Protection against mold growth
- Prevents CO2 increase
Each gable side has one entrance.
Durable, double stitched zipper system
- Fast and easy opening
- Entrance 1: Dimensions W / H approx .: 3,8/2,0 m
- Entrance 2: Dimensions W / H approx .: 1,6/2,0 m
Uncomplicated assembly
Assembly in a few steps:
- Install roof structure
- Pull on the roof tarpaulin
- Attach standing poles to one side
- Attach further standing poles
- Attach sidewalls
- Anchor the tent to the ground depending on earth or concrete anchors
- Fix the storm protection ropes
- With easy-to-understand assembly instructions
- Everything you need is included: No extra tools needed for assembly
- The assembly time is with 4 persons on average 1,5 - 2 hours.
Assembly
Delivery
- Steel frame with bolt and screw connection
- Roof tarpaulin
- 10 Side panels
- 2 gable parts with zipper entrance
- Bungees
- Incl. Pegs
- Storm protection ropes
- Assembly instructions and assembly tool
