Marquee with PE tarpaulin and click-in system: quick and simple assembly
Compact in storage, lightweight and easy to assemble: Our Economy PE marquees from our Product Line Optiline offer a particularly quick set up thanks to the high-quality click-in system. The fully galvanised steel frame is protected against corrosion. All tarpaulins are made of approx. 180 g/m² PE material, they are UV resistant and 100% waterproof. The welded seams offer optimal protection against water penetration. The side and gable panels can be attached as needed to provide various assembly options. The marquee has two zip entrances of the same size. For this marquee, we guarantee the availability of spare parts for 10 years from the date of purchase.
Enough space for
~ 18- ~ 13
- x 0.25
Required for assembly
- ~ 1 h
- ~ 2
Optiline Economy Marquees
- Approx. 180 g/m² PE tarpaulin
- Similar to a woven plastic tarpaulin
- Connection type: high quality click-in system
- Quick and easy to set up
Product may differ in size and colour from the image.Characteristics and usage possibilities
Lightweight, portable marquee with practical click-in system for quick assembly and disassembly with approx. 180 g/m² PE tarpaulin ‒ 100% waterproof.
- Quick and easy to set up without tools thanks to the click-in system - ideal for mobile use
- Easy to transport due to its comparatively low weight: Perfect for party hosts, promotion, trade fairs or markets
- Modern, bright ambience with an arched window appearance: an elegant marquee for weddings, birthdays, confirmations and other festivities
- Alternatively, it can be used at short notice as a shelter, weatherproof storage area, storage tent or tent garage
- It can also be used as an open shelter - you're free to remove side-panels and gable walls

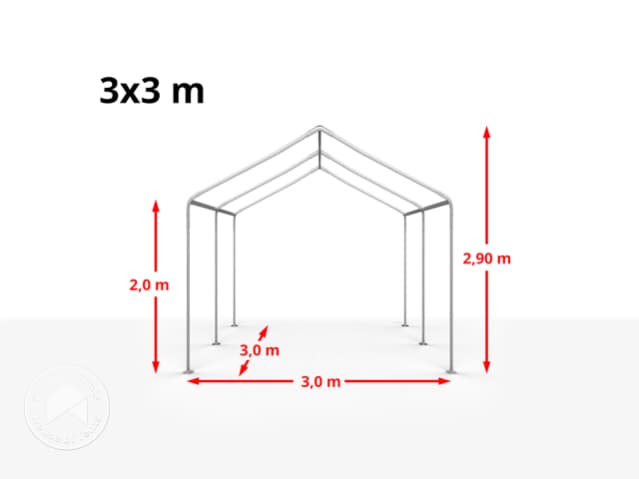

Dimensions
| Base: | 3 x 3m - 9.00 m² |
| Eave height: | approx. 2.0 m |
| Apex height: | approx. 2.9 m |
| Entrance 1: | approx. 2.0 x 2.0 m |
| Entrance 2: | approx. 2.0 x 2.0 m |
Product may differ in size and colour from the image.Structure
Thanks to the high-quality click-in system, the solid, fully galvanised steel frame can be set up quickly and without tools.
- Fully galvanised steel construction – no shock-sensitive powder coating

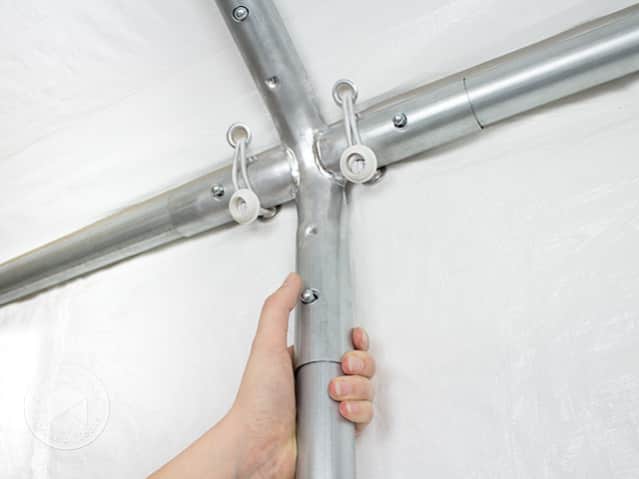

- High-quality click-in system: simple and fast connection of components
- Steel pole connectors:
- Diameter: approx. 42 mm
- Fully galvanised steel poles:
- Diameter: approx. 38 mm

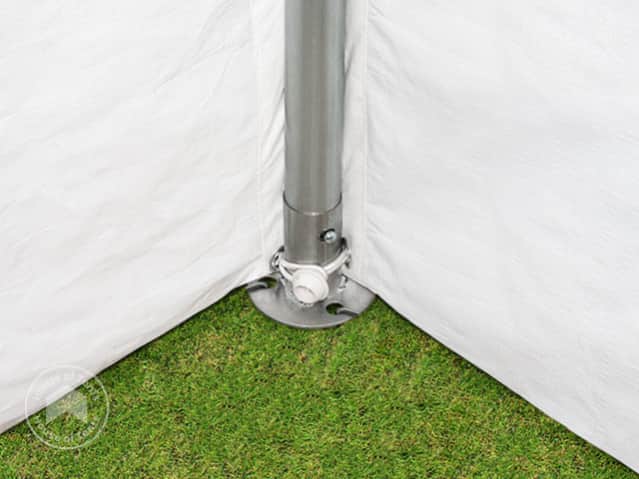

- Foot plates at the end of the poles ensure a secure and stable footing
Ground fastening:
- Tent pegs to secure the tarpaulin and poles
- 3m guy ropes and tent pegs ‒ to secure the roof tarpaulin at the corners
Product may differ in size and colour from the image.Product may differ in size and colour from the image.
Tarpaulin
The PE tarpaulin is easy to handle and offers great weather protection. It is 100% waterproof and UV resistant
- Tarpaulin made of approx. 180 g/m² PE material
- single-piece roof tarpaulin, two gable parts and two full lenth side panels
- All seams are sealed by a high-temperature processing
- 100% waterproof
- UV resistant
- Full-length side panels for quick assembly
- Bright, open ambience: robust, square arched windows made of 12-layer PVC material
- Size: approx. 131x142 cm
- Variable construction: sidewalls can be removed completely or partially
- One entrance per gable wall:
- can be rolled up and fixed with bungees
- with robust zippers for easy opening and closing

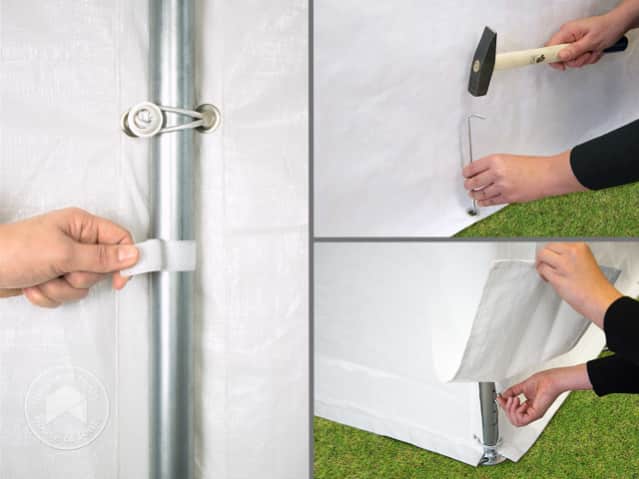

- Tarpaulin has a ground skirt extending approx. 5 cm around the tent. It has eyelets that allow it to be pegged to the ground
- Tarpaulins are attached to the frame via bungees
- Heatable: Can be heated with fan assisted gas heaters, electric heaters and other heating devices
Product may differ in size and colour from the image.Delivery information
- Steel frame with a click-in system
- PE tarpaulin set consisting of:
- Roof cover
- 2 gable panels
- 2 side panels
- Bungees
- Tent pegs
- Guy ropes
- Assembly instructions
Assembly
Quick set-up without any tools thanks to a simple design and a high-quality click-in system
- Assembly in five steps:
- Set up the roof frame
- Put on the roof tarpaulin
- Attach poles on one side and then the other
- Attach side and gable panels
- If necessary, secure the tent with tent pegs and guy ropes
- Comes with easy-to-understand assembly instructions
- Everything included: No further tools are necessary for the assembly
- The average construction time with 2 people is 1 hour.
- Over 25,000 tents and 100,000 spare parts permanently in stock and available for immediate delivery
- Largest colour and model variety in many sizes and features
- Use of durable and stable materials
- Fast, insured shipping
- We deliver U.K. wide!
Overview
| Item No. | 90112 |
| Size | 3x3m |
| Weight | 29.6 kg |
| Material | PE |
| Colour | white |
| Cartons | 2 |
Dimensions
| Drive-in width | approx. 2.0 m |
| Drive-in height | approx. 2.0 m |
| Ridge height | approx. 2.9 m |
| Side wall height | approx. 2.0 m |
| Entrance size | approx. 2.0 x 2.0 m |
Materials
| Roof section | approx. 180g/m² |
| Side panels | approx. 180g/m² |
| Steel poles | approx. 38 mm |
| Steel pole connectors | approx. 42 mm |
| Outer material | PE |
| Frame-Material | Steel |
Do you have any questions?
| Item no.: | 90112 |
| Size: | 3x3m |
| Weight: | 29.6 kg |
| Material: | PE |
| Colour: | white |
| Number Of Boxes: | 2 |
Order replacement parts
Every replacement part in this tent can be re-ordered! Please call us or simply submit a contact form.
Safety instructions
- Wind and snowloads have not been tested for this tent.
- Ensure the tent is assembled correctly and clear snow from the roof promptly In the case of emerging wind, please use our storm set. In case of wind, you are advised to use our storm set. In case of strong winds and heavy snowfall we recommend temporary disassembly.
- Alternatively, enquire about the Safety Plus package for tents with a side height of 2.6 m or more, in order to obtain guaranteed wind and snowload capacities.
- Please observe the safety information included with the assembly instructions.
