5x10m Marquee / Party Tent, w. ground frame, PE 300 g/m², white

Item No.: 92104

Available for dispatch 13.06.2022
approx. delivery time: 7 - 12 working days
white

incl. 20% VAT

Marquee with PE tarpaulin, groundbar and roof reinforcements: particularly sturdy and extra stable

Our Professional PE marquees from our Optiline product line are suitable for medium-term use and have a high level of stability thanks to the groundbar frame and roof reinforcements. The particularly solid steel frame is bolted and fully galvanised, thus protected against corrosion. The tarpaulins are made of approx. 300 g/m² PE material, are UV resistant and 100% waterproof. Welded seams offer great protection against water ‒ even heavy rain will not penetrate the tent. There are many options for entrances around the tent since gable walls or individual side panels can be attached as needed. The marquee has two zipper entrances of different sizes as well as two ventilation windows with closeable flaps. For this marquee, we guarantee the availability of spare parts for 10 years from the date of purchase.

Enough space for

  • ~ 100
  • ~ 71
  • x 8

Required for assembly

  • ~ 2,5 - 3 h
  • ~ 4
Optiline Professional Marquees

Optiline Professional Marquees

  • Approx. 300 g/m² PE tarpaulin with a 3 year guarantee
  • Similar to a woven plastic tarpaulin
  • Individual side panels - varied entrance options
  • Highly stable due to groundbar frame and roof reinforcements

Product may differ in size and colour from the image.

Characteristics and usage possibilities

Particularly robust marquee with ground bar and roof supports with approx. 300 g/m² PE tarpaulin - 100% waterproof.

  • Robust, stable marquee with several stabilising elements such as a ground bar frame and roof reinforcements
  • Provides reliable protection and safety even in harsh weather conditions
  • Also suitable for occasional long-term use
  • Modern, bright ambience with arched windows: elegant marquee for weddings, birthdays, confirmations and other festivities
  • Alternatively, it can be used as a shelter, weatherproof storage area, storage tent or tent garage over longer periods
  • It can also be used as an open shelter - you're free to remove side panels and gable walls are no obligation

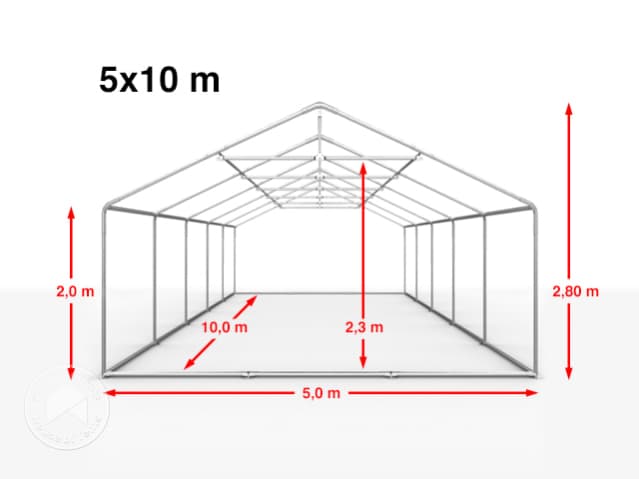

Dimensions

Base:5 x 10m - 50.00 m²
Eave height:approx. 2.0 m
Apex height:approx. 2.8 m
Entrance 1:approx. 3.8 x 2.0 m
Entrance 2:approx. 1.6 x 2.0 m

Further entrances on the sides are possible by omitting the side panels

Use of space

Are you unsure about the maximum number of people that can be accommodated in this marquee? Click through these pictures to see possible layouts with tables. The calculations below take account of space needed for walkways. As an example, the following room usage is possible:

  • standing room for about 100 people
  • or about 64 seats with 8 folding table and bench sets (approx. 2 m long)
  • or about 71 seats on chairs lined up in rows
Product may differ in size and colour from the image.Product may differ in size and colour from the image.
Product may differ in size and colour from the image.

Structure

The robust and stable, fully galvanised steel construction is equipped with a groundbar frame and roof reinforcements.

  • Robust, fully galvanised steel construction – no shock-sensitive powder coating
  • Groundbar frame for increased stability
  • Roof reinforcements provide increased load-bearing capacity
  • Stable and robust connection of the frame parts by means of bolts at the connectors. The 50 mm bolts pass completely through the poles and are secured with wing nuts
  • Steel pole connectors:
    • Diameter: approx. 42 mm
  • Fully galvanised steel poles:
    • Diameter: approx. 38 mm
  • Foot plates at the end of the poles ensure stable positioning

Ground Fastening
  • Tent pegs to secure the tarpaulin and poles
  • 3 m guy ropes and tent pegs ‒ to secure the roof tarpaulin at the corners
Product may differ in size and colour from the image.Product may differ in size and colour from the image.Product may differ in size and colour from the image.
Product may differ in size and colour from the image.

Tarpaulin

The PE tarpaulin is easy to handle and offers optimal weather protection. It is 100% waterproof and UV resistant. It provides high UV protection.

  • Tarpaulin of approx. 300 g/m² PE material
  • Single-piece roof tarpaulin, two gable parts and individual 2m wide side panels
  • All seams are welded by high-temperature processing
  • 100% waterproof
  • UV resistant
  • Side panels allow controlled air excahnge for optimal air circulation and protection from condensation due to minimal air passage between overlapping side panels
  • Closeable ventilation windows in the upper gable area
  • Bright, open ambience: robust arched windows made of 12-layer PVC material
    • Size: approx. 131x142 cm
  • Variable design: sidewalls can be removed completely or partially
  • One entrance per gable wall:
    • can be rolled up and fixed with bands
    • with robust zippers for easy opening and closing
    • one wide entrace and one standard entrance
  • Wind deflecting groudn skirting: Tarpaulin extends 30cm along the ground and includes eyelets so that it can be secured with tent pegs to provide extra protection from wind and rain
    • Movements of the tarpaulin are reduced
    • Prevents draught and keeps out rainwater
  • Tarpaulins are attached to the frame via rubber loops
  • Heatable: Can be heated with fan assisted gas heaters, electric heaters and other heating devices
Product may differ in size and colour from the image.

Delivery information

  • Steel frame with bolted connections, groundbar frame and roof reinforcements
  • PE tarpaulin set consists of:
    • Roof cover
    • 2 gable panels
    • 10 side panels
  • Bungees
  • Tent pegs
  • Guy ropes
  • Assembly instructions and tools

Assembly

Stable construction with a robust screw system, a groundbar frame and roof reinforcements

  • Assembly in six steps:
    1. Set up the roof construction
    2. Put on the roof tarpaulin
    3. Attach poles on one side and then the other
    4. Attach the groundbar frame
    5. Attach side and gable panels
    6. If necessary, secure the tent with tent pegs and guy ropes
  • Comes with easy-to-understand assembly instructions
  • Everything included: No further tools are required for the assembly
  • The average assembly time with 4 people is 2.5 - 3 hours.
Why shop with us?
  • Over 25,000 tents and 100,000 spare parts permanently in stock and available for immediate delivery
  • Largest colour and model variety in many sizes and features
  • Use of durable and stable materials
  • Fast, insured shipping
  • We deliver U.K. wide!

Overview

Item No.92104
Size5x10m
Weight134 kg
MaterialPE
Colourwhite
Cartons8

Dimensions

Drive-in widthapprox. 3.8 m
Drive-in heightapprox. 2.0 m
Ridge heightapprox. 2.8 m
Side wall heightapprox. 2.0 m
Entrance sizeapprox. 3.8 x 2.0 m

Materials

Roof sectionapprox. 300 g/m²
Side panelsapprox. 300g/m²
Steel polesapprox. 38 mm
Steel pole connectorsapprox. 42 mm
Outer materialPE
Frame-MaterialSteel
Expert advice - contact now

Do you have any questions?

Expert hotline

0118 31 50 873

Mon - Fri 8am - 5pm

Write to us!

Contact form

Our team of experts will call you ASAP

Downloads


Features
Item no.:92104
Size:5x10m
Weight:134 kg
Material:PE
Colour:white
Number Of Boxes:8
Assembly instructions

Order replacement parts

Every replacement part in this tent can be re-ordered! Please call us or simply submit a contact form.

Order replacement part



Safety instructions

  • Wind and snowloads have not been tested for this tent.
  • Ensure the tent is assembled correctly and clear snow from the roof promptly In the case of emerging wind, please use our storm set. In case of wind, you are advised to use our storm set. In case of strong winds and heavy snowfall we recommend temporary disassembly.
  • Alternatively, enquire about the Safety Plus package for tents with a side height of 2.6 m or more, in order to obtain guaranteed wind and snowload capacities.
  • Please observe the safety information included with the assembly instructions.
