Article no.: 5320

Front wall for container roofing 8m wide with easy-up entrance, PRIMEtex 2300 fireproof, white

Contop
Calculate delivery costs now
uk
  • uk
Free Mainland delivery
£999.00incl. 20% VAT
1
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
available immediately
In stock, direct dispatch: 2 - 3 working days for mainland delivery
Buying tips and enquiries
01473 951 332
Product enquiry

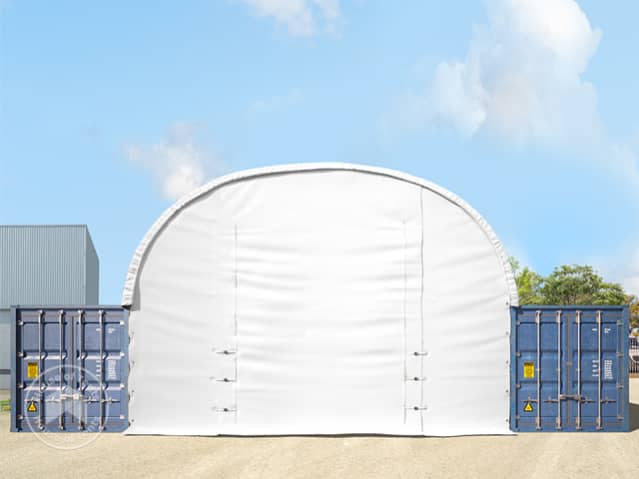

Front wall for container shelters with a width of 8 m, suitable for mounting on High Cube containers. The front wall has a practical pull gate and offers additional protection against the elements. It consists of a sturdy, corrosion-protected steel tube frame and an extra-robust, cast PVC tarpaulin. The PVC material is UV-resistant, 100% waterproof and has a 3 x higher tear strength than conventional PVC commercial tarpaulins. The front wall is fixed with tension ropes and has a large main gate that can be easily opened by a pull mechanism. Solid, fully galvanised full steel ground stakes (approx. 100 cm long) are included in the delivery for fastening to soft floors. The height of the container or the relevant supporting structure should be approx. m.

Frame

  • Robust steel linkage protected against corrosion by galvanizing
  • Steel tubes
    • Diameter: ca. 48 mm
    • Wall thickness: ca. 1.6 mm
  • Connector
    • Durchmesser: ca. 34 mm
    • Wall thickness: ca. 1.4 mm
  • Special tensioning cable system for fixing the tarpaulin
  • Solid, 100 cm long solid steel pegs for mounting on soft floors
CON_FRONTWALL
* Product may differ in size and colour from the image.
  • Tearing-strength*25: 2300 N equivalent to 230 kg according to DIN EN ISO 13934-1
  • 3 x more tear resistant than standard PVC tarpaulins
  • Fireproof certified according to DIN EN 13501 and DIN 4102 B1
  • High resistance to UV light
  • Excellent UV protection of 50+
  • Perfect weather protection, 100% waterproof
  • Stainless brass eyelets
  • Durable pull-up door for quick use

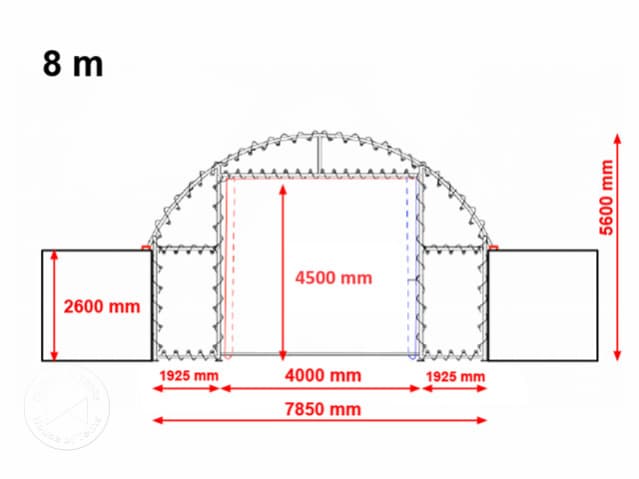

AMZ-Contop_Frontwall_8m
Width:ca. 8.00 m
Ridge height:ca. 5.60 m
Entrance width:ca. 4.00 m
Entrance height:ca. 4.50 m
See specifications

Reviews

*25 According to the standard "DIN EN ISO 13934-1", the tearing strength is determined in a stretch test using a 5 cm wide strip sample of the tarpaulin. The specified value thus indicates the tearing force per 5 cm of tarpaulin width (in the lengthwise direction).
